XPR210F

XPR210F

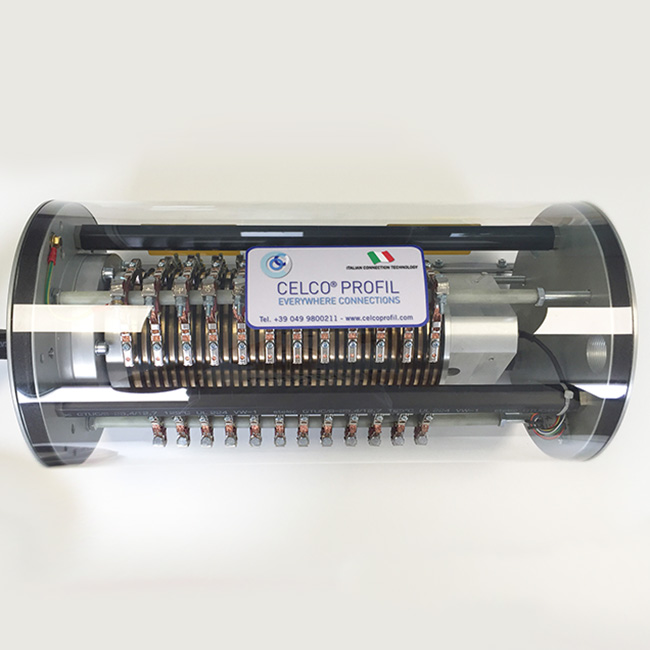

Electric rotary joint with slip ring, for the transmission on 360° of power ratings, auxiliaries, digital and analog signals.
With through hole
With aluminium cover, diameter of 207mm

Technical specifications

ModelRings N°Power ringsAuxiliary ringsMax RPM
XPR210-(12p+6s)C1812x50AmpFieldbus + Ethercat250
XPR210-(12p+8s)A2012x50Amp8x10Amp300
XPR210-(20p)2020x20Amp/300
XPR210-(20p+6s)C2620x20AmpFieldbus + Ethercat250
XPR210-(20p+6s)C3220x20AmpFieldbus + Ethercat250

Features

• Voltage: 600V (test at 2200 Vac)
• Rings: brass
• Rings output cable: axials
• Brushes output cable: radial
• Standard degree of protection IP54
• Ring-brush contact resistance: < 20 mohm
