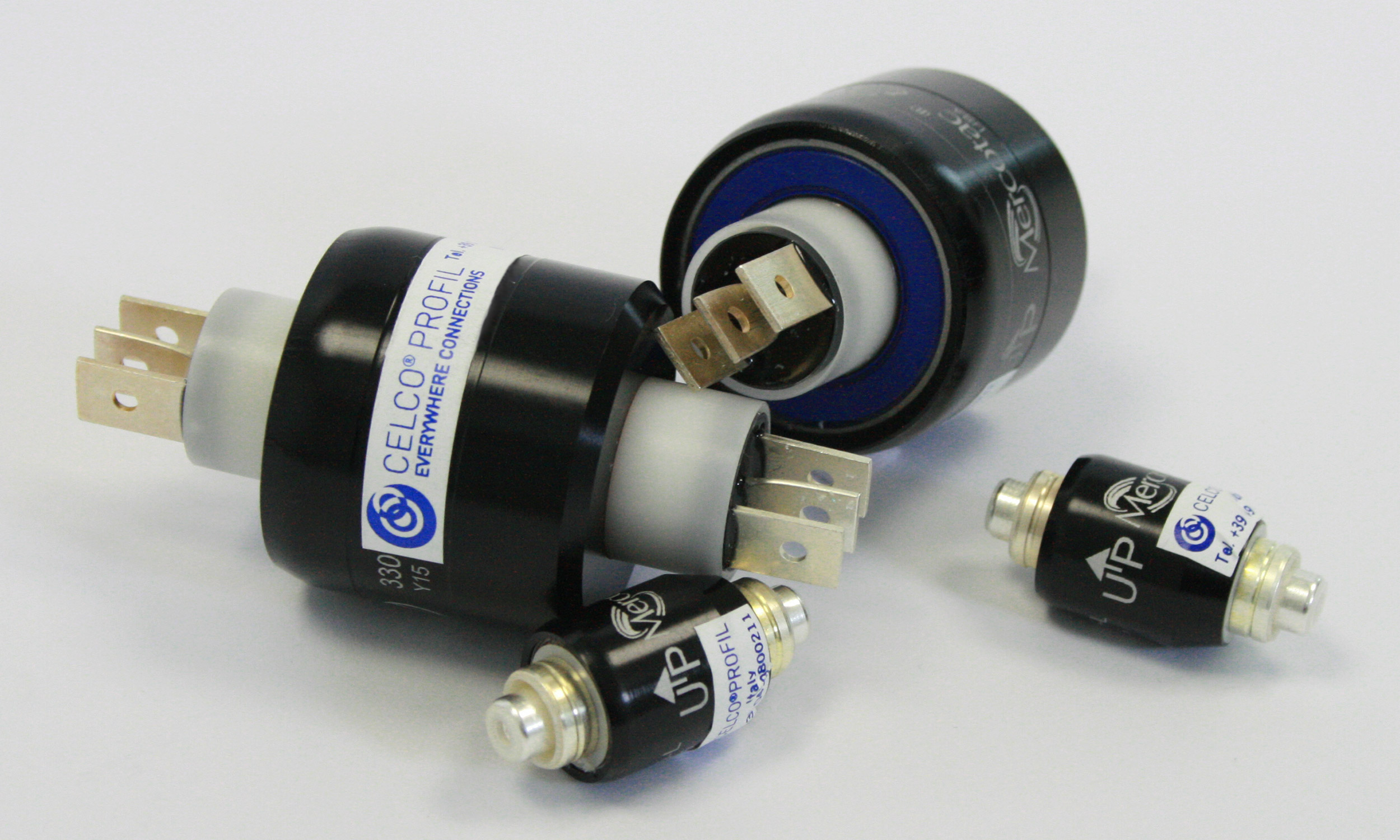

Mercotac® are a type of rotating manifolds that exploit the conductivity or mercury to transfer signals and power. The connection is through a tank of liquid metal (Mercury) linked to the contact at a molecular level, which ensures low resistance and a stable connection between contacts throughout the rotation, without the wear of the components.

Technical specifications

Mod

Conductors
Current rating Amp.
a 240VAC
Voltage range
V(AC/DC)
MAX RPM
Rotation torque
Gr-cm
110/-T110-360035
110-L/-TL110-120010
205240-250200075
205-L240-250120020
205-H240-250360035
305340-2501800100
305-L340-2501000100
230230
0-2501800200
3303300-2501200300
3313aus 2x4
pot 1x30
0-2501800200
4304aus 2x4
pot 2x30
0-2501200400
4354300-250300850
6306aus 2x4
pot 4x30
0-250300700
8308aus 2x4
pot 6x30
0-2502001000
12501250-1200250
Mod

Conductors
Current rating Amp.
a 240VAC
Voltage range
V(AC/DC)
MAX RPM
Rotation torque
Gr-cm

Features

• Signal transfer with very low electrical interferences
• Resistance below 1 mΩ
• Maximum compactness resulting in reduced dimensions thanks to its unique design
• No maintenance (typically necessary in the case of traditional manifolds)
• Efficiency over the entire life of the product without signal degeneration
• Airtightness
• Mechanical durability guaranteed by the ball bearing
• Standard degree of protection: IP00

Data sheet

Download the data sheetScarica la scheda tecnica del prodotto

Applications

• Packaging machinery
• Rotary tables
• Pharmaceutical machinery
• Heating
•Testing equipment
•Strain gauges, thermocouples
•Winders, unwinders
