Celcotac

Celcotac

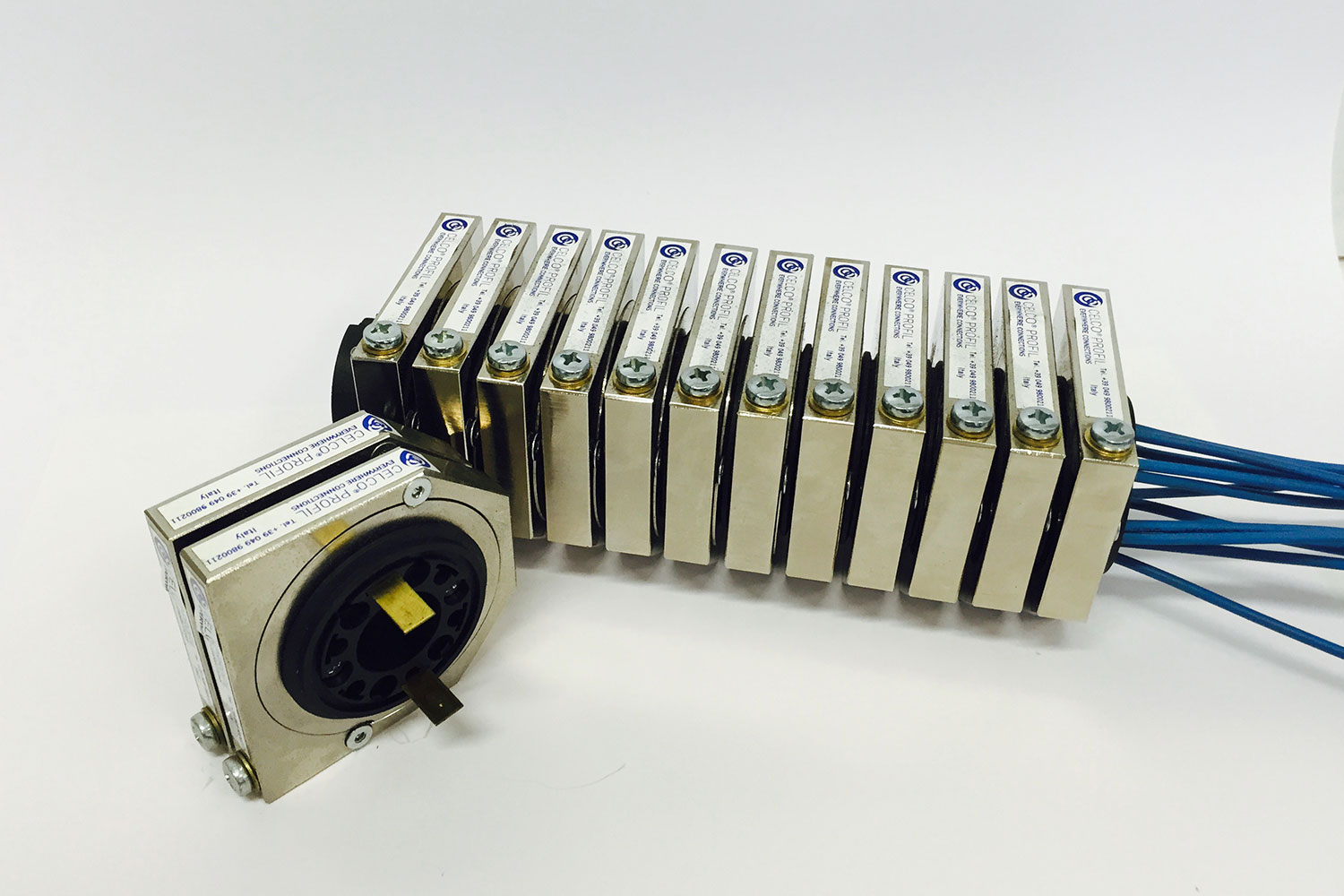

Celcotac is a rotating slip ring, made with a modular slip ring as central body and a metal cover that contains it. A flexible continuous contact guarantees the transmission of the signals.  Its compact dimension makes Celcotac the most suitable slip ring for those applications where the available space is reduced.
Use Flex tecnology that avoids electrochemical corruption of the rings.

Technical specifications

ModelRings N° Current rating Amp.
a 240 VAC
Voltage range V(AC/DC)MAX RPM
XCELC20-0218BA22040020
XCELC20-0418BA42040020
XCELC20-0618BA62040020
XCELC20-0818BA82040020
XCELC20-1218BA122040020

Features

• Output: FASTON, WIRE, FASTON+WIRE (wire section 1mmq)
• Ring-brush contact resistance: < 20 mohm
• Rings: Brass
• Available rings with silver/gold treatment
• Brushes: Multi-contact system
• Standard degree of protection: IP00

Data sheet

Download the data sheetScarica la scheda tecnica del prodotto
